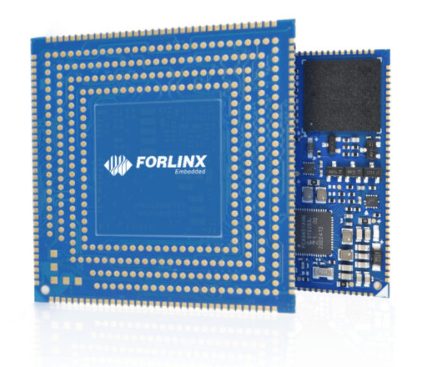

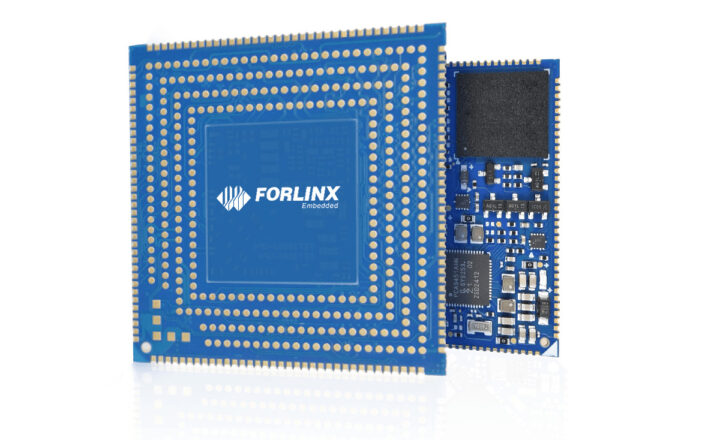

Forlinx Embedded UP4 is a new family of pin-to-pin compatible system-on-modules currently offered with Rockchip RK3568J/RK3562J, NXP i.MX 9352, or Allwinner T527N/T536 processors. The UP4 modules measure just 40×40 mm and expose 487 pins through a hybrid LCC (Leadless Chip Carrier) and LGA (Land Grid Array) design with 1.0mm contact pitch and 1.27mm ball pitch, respectively. This should allow companies to design a single carrier board for multiple CPU variants. Forlinx UP4 specifications: SoC FET-MX9352-UP4 – NXP i.MX 9352 with 2x Arm Cortex-A55 cores @ up to 1.7 GHz, Cortex-M33 real-time core @ 250 MHz, 2D GPU only, 0.5 TOPS Arm Ethos U65 microNPU FET3568-UP4 – Rockchip RK3568B2/J with 4x Arm Cortex-A55 cores @ up to 2.0/1.8 GHz, Arm Mali-G52 MP2 3D GPU, 1 TOPS AI NPU FET3562J-UP4 – Rockchip RK3562J with 4x Arm Cortex-A53 cores @ 1.8 GHz, Arm Mali-G52-2EE 3D GPU, 1 TOPS NPU FET527N-UP4 – Allwinner T527N […]
The post Forlinx UP4 – A 40×40 mm LCC + LGA system-on-module family with Rockchip, NXP, and Allwinner CPU options appeared first on CNX Software – Embedded Systems News.
